BaitWell Buddy System

Easy Installation

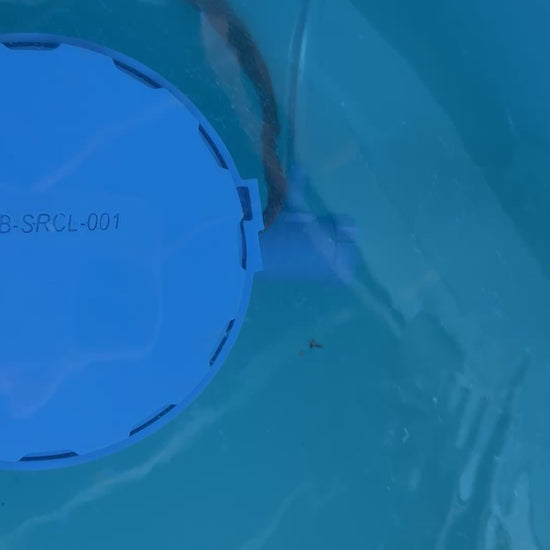

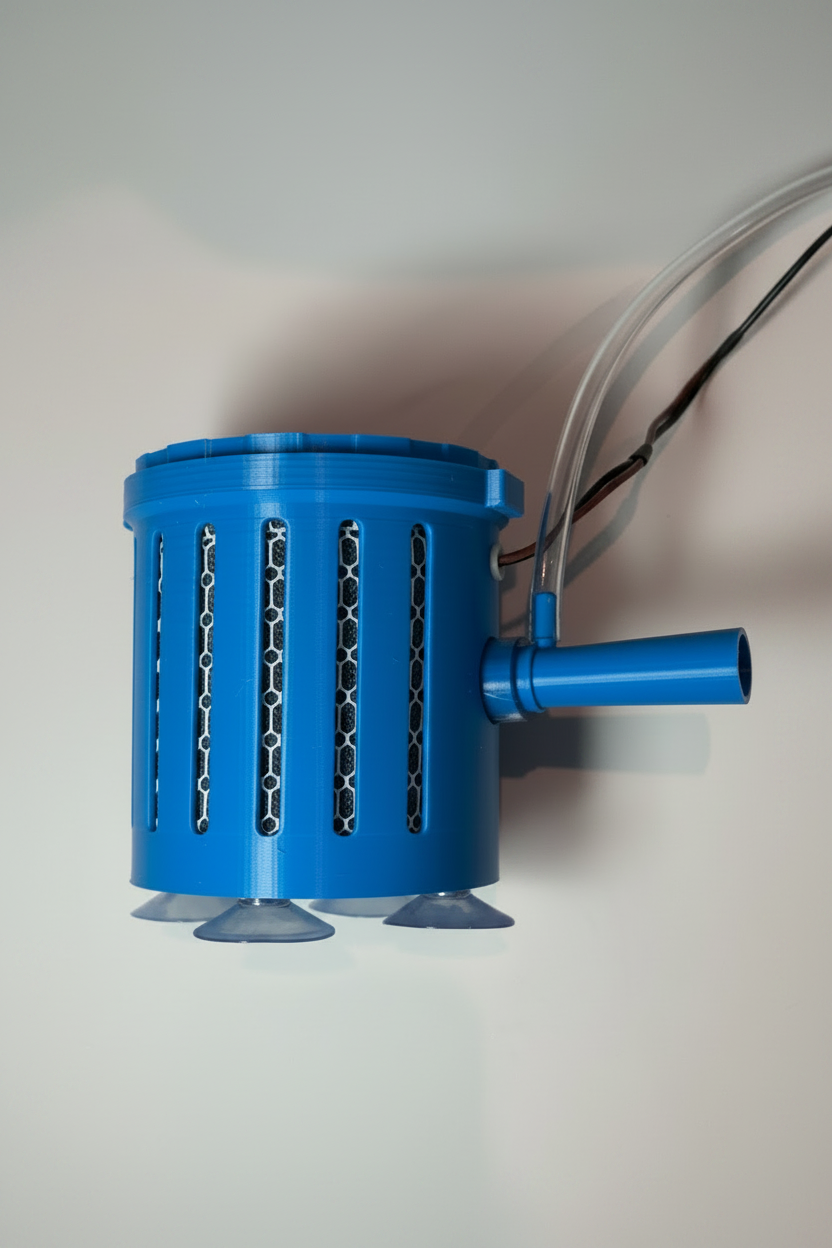

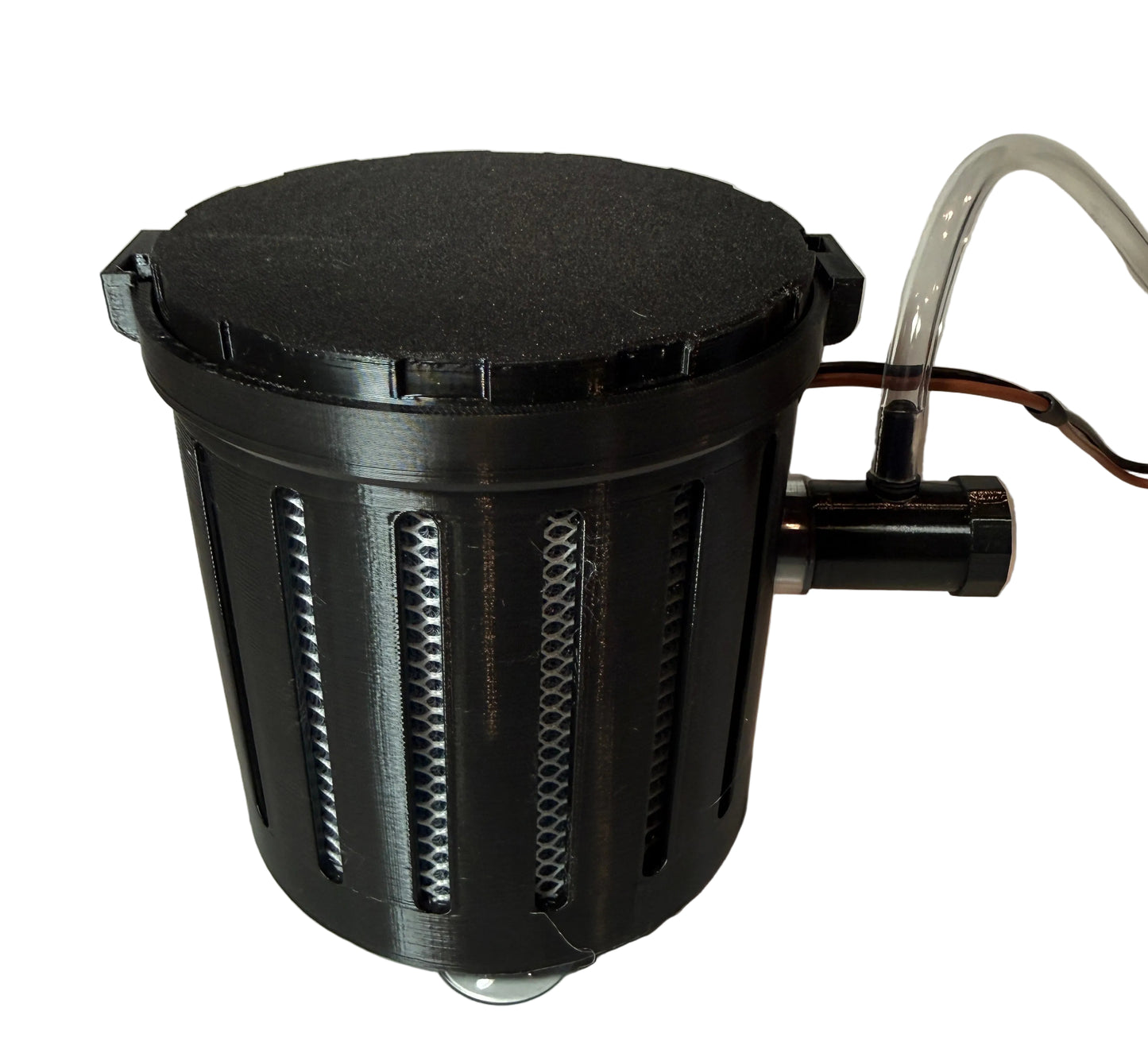

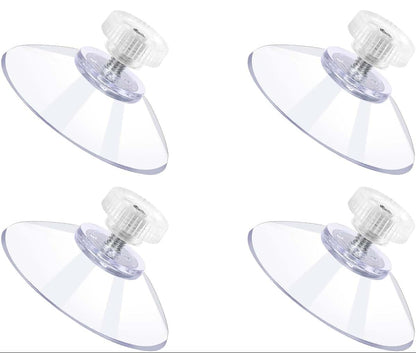

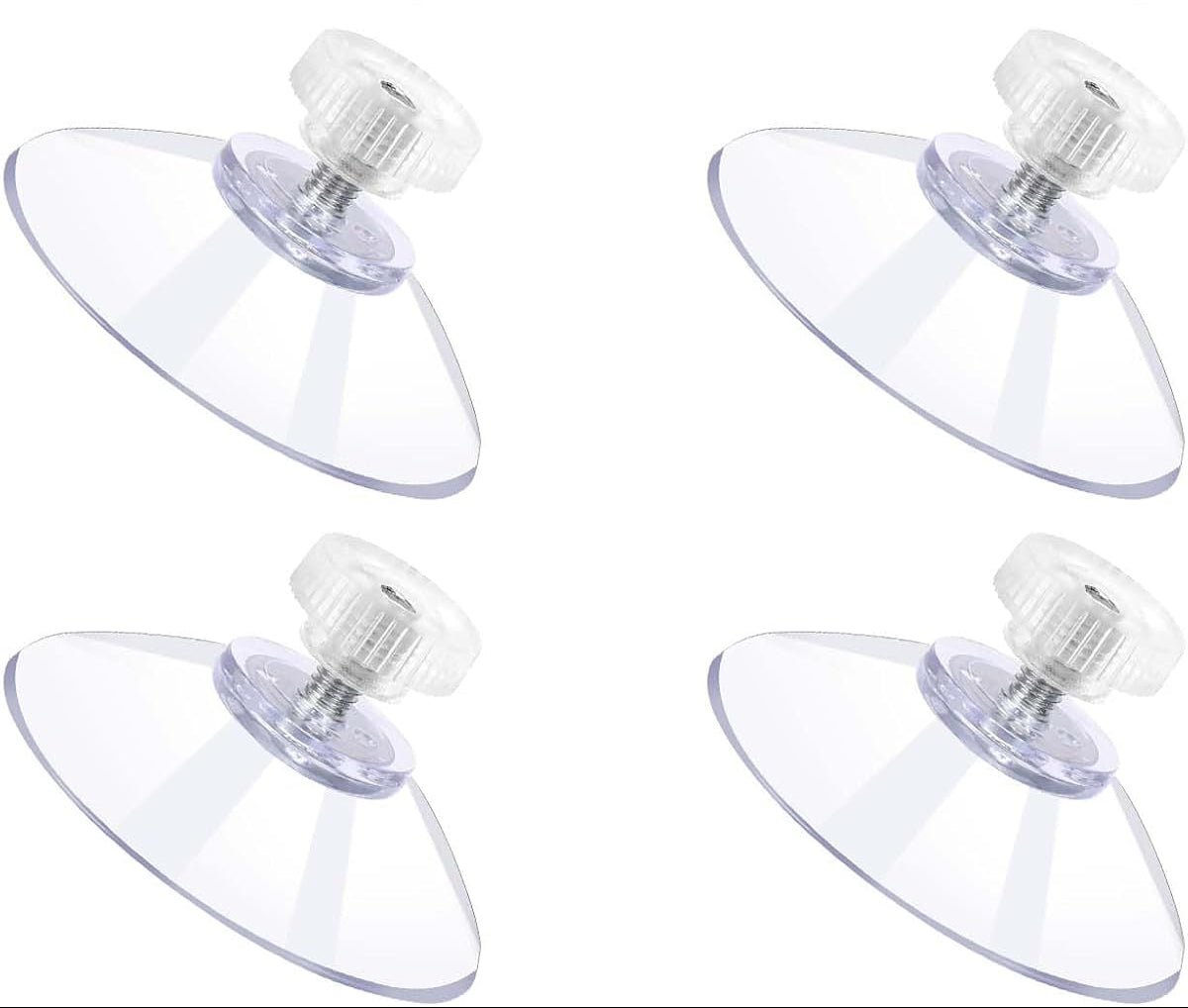

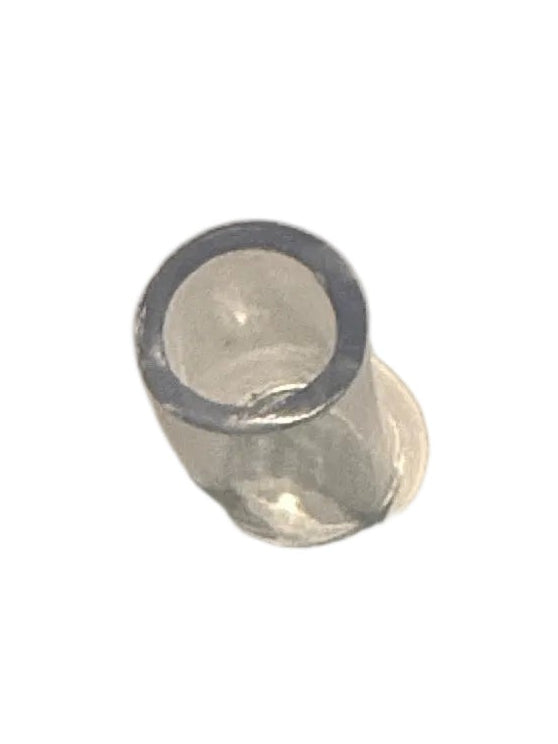

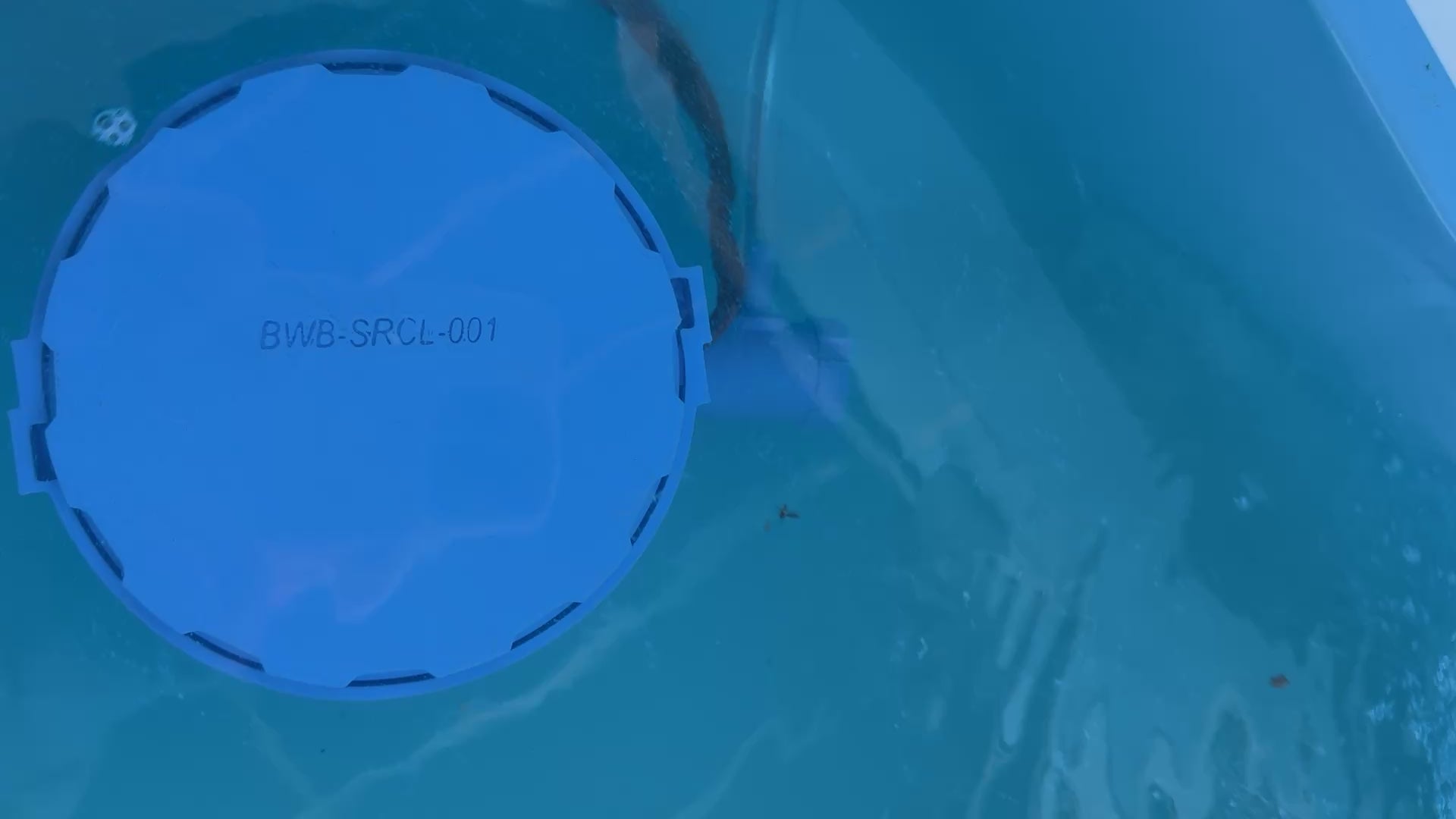

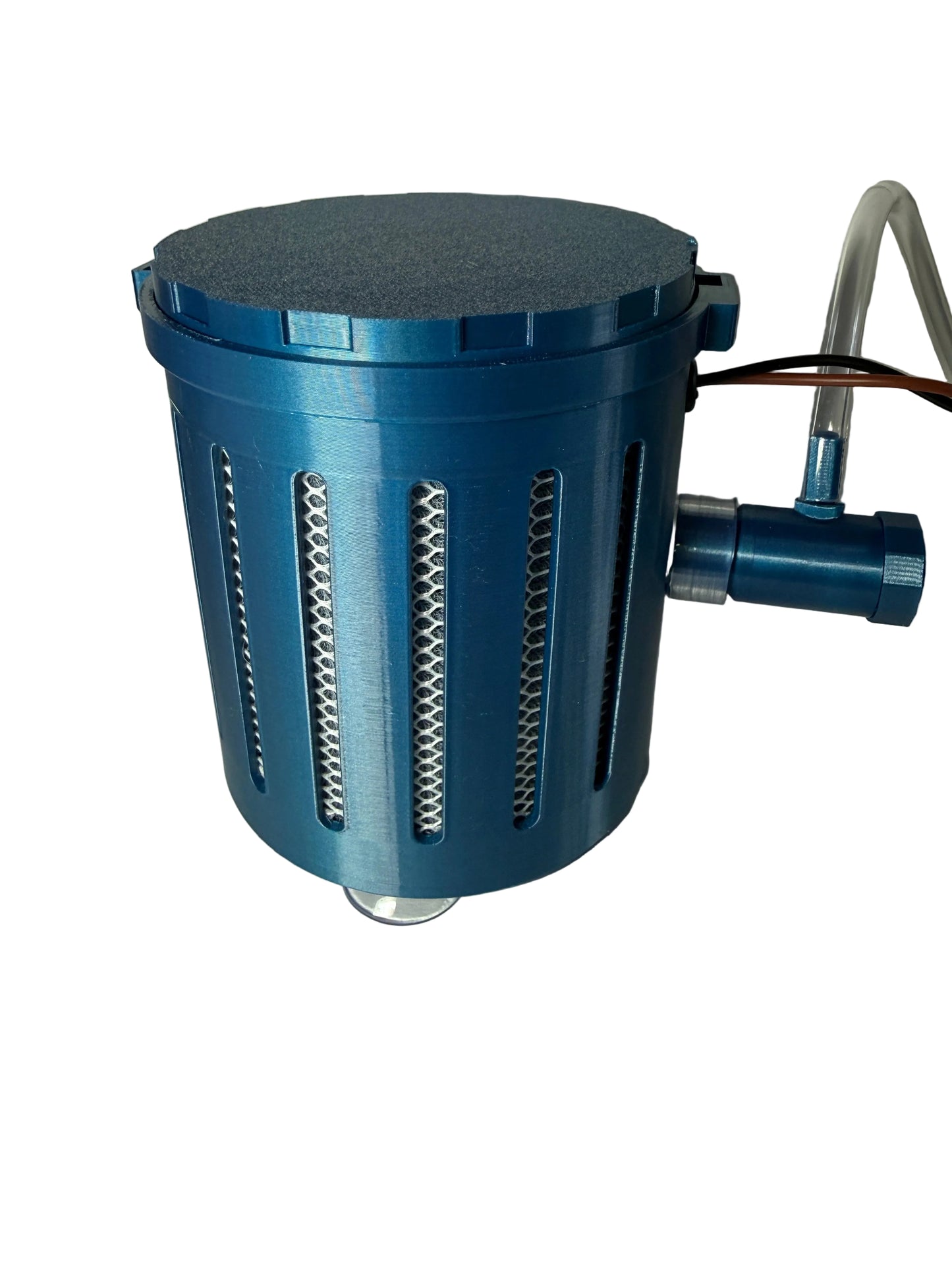

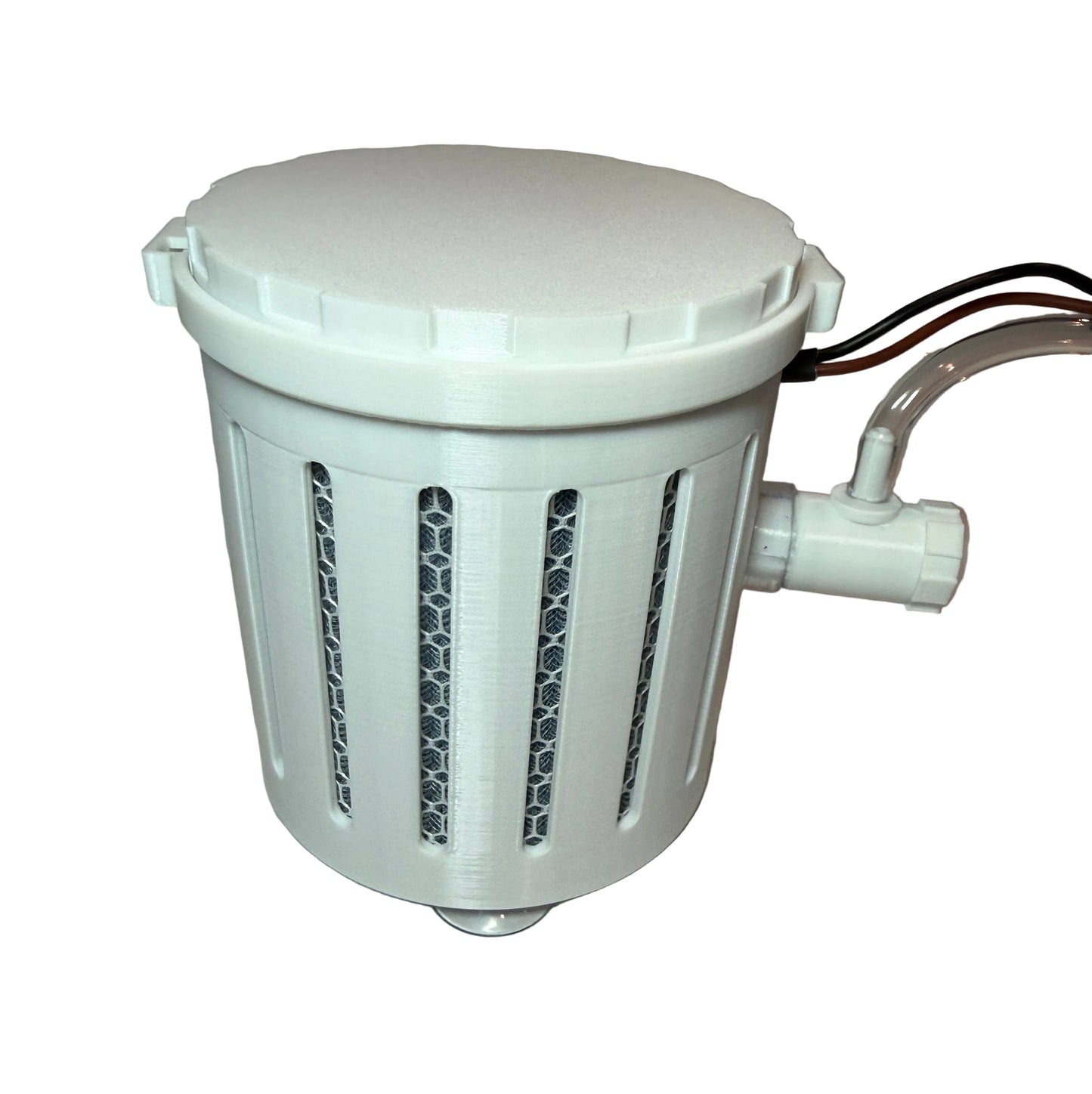

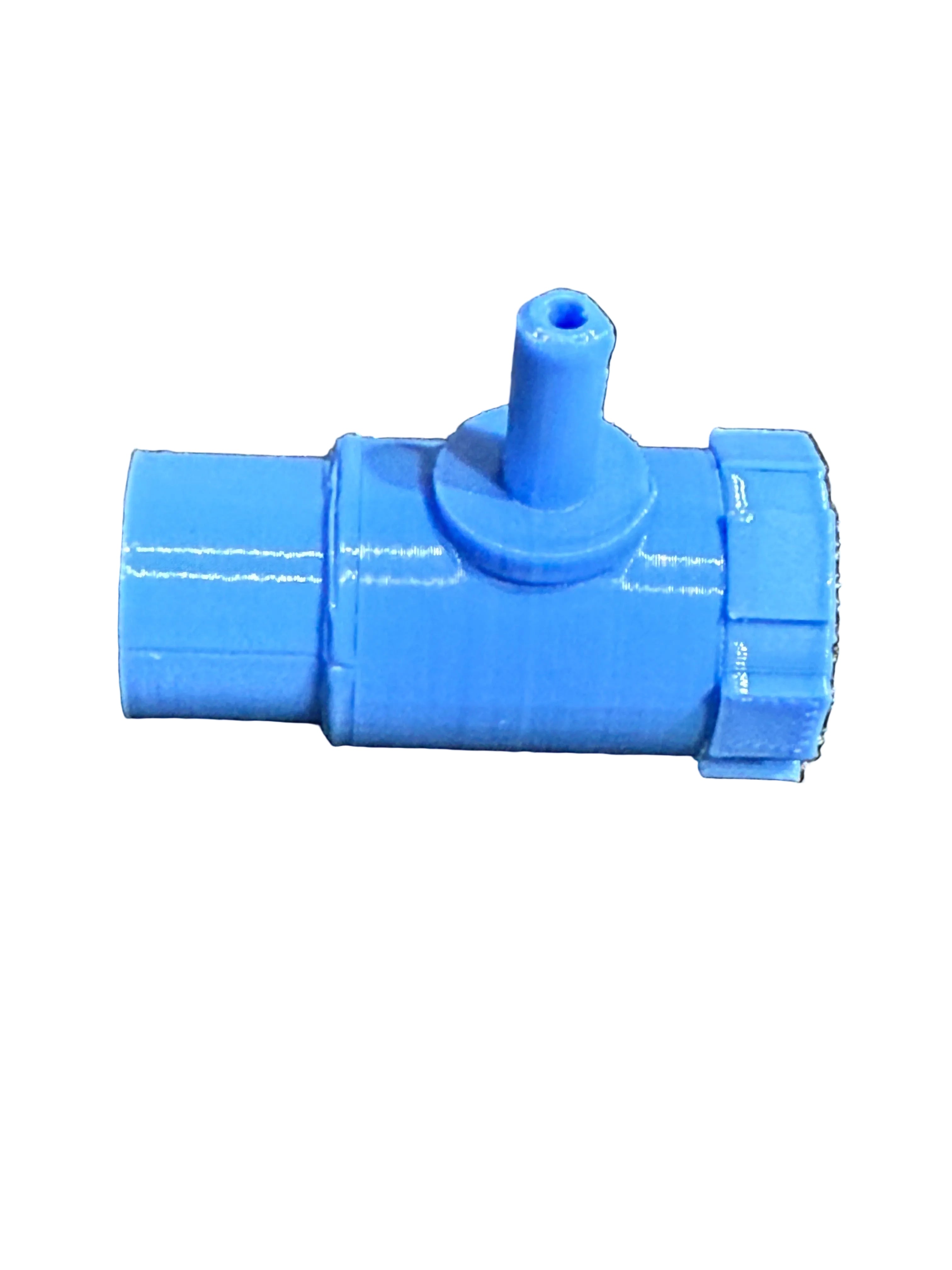

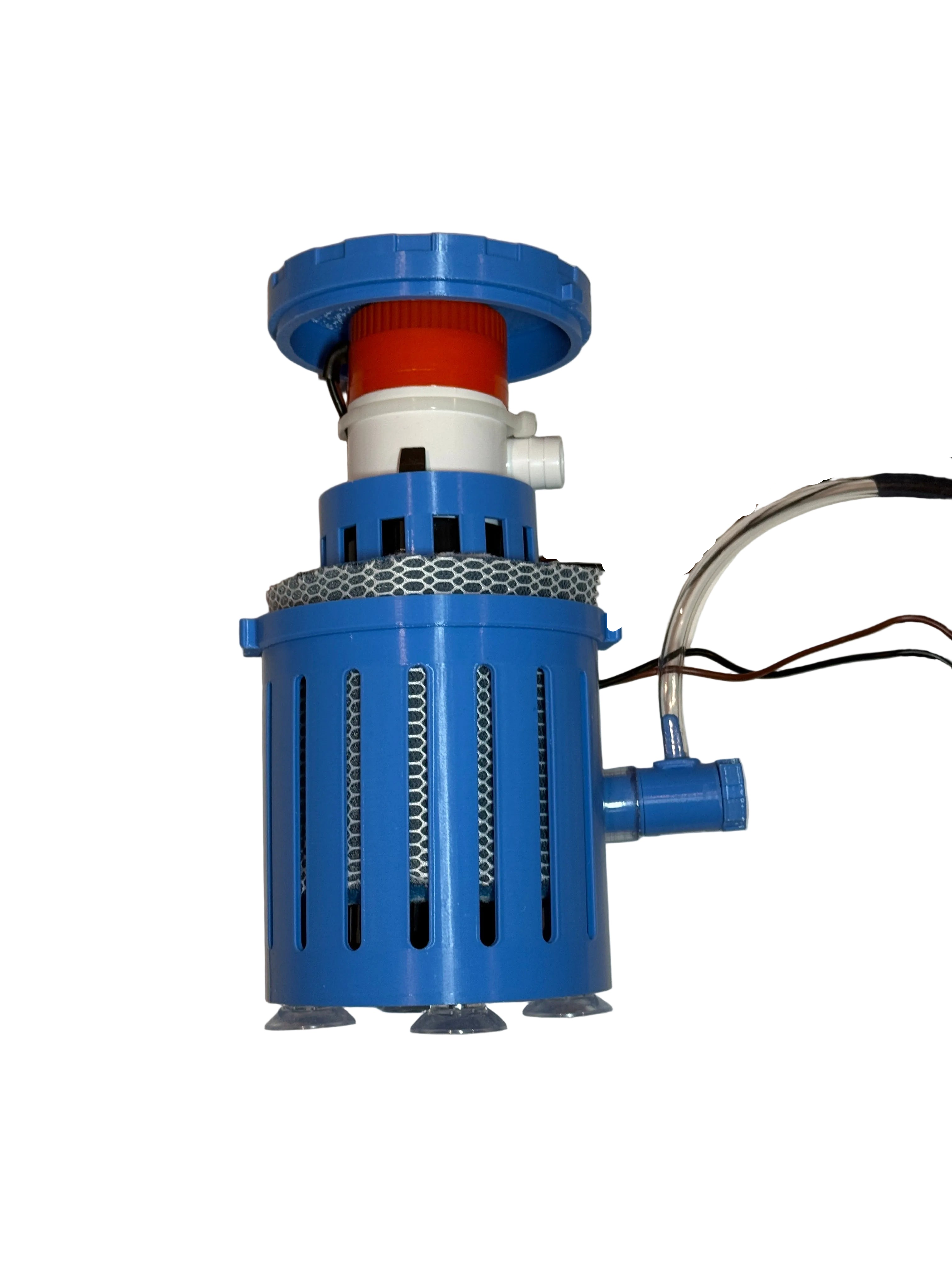

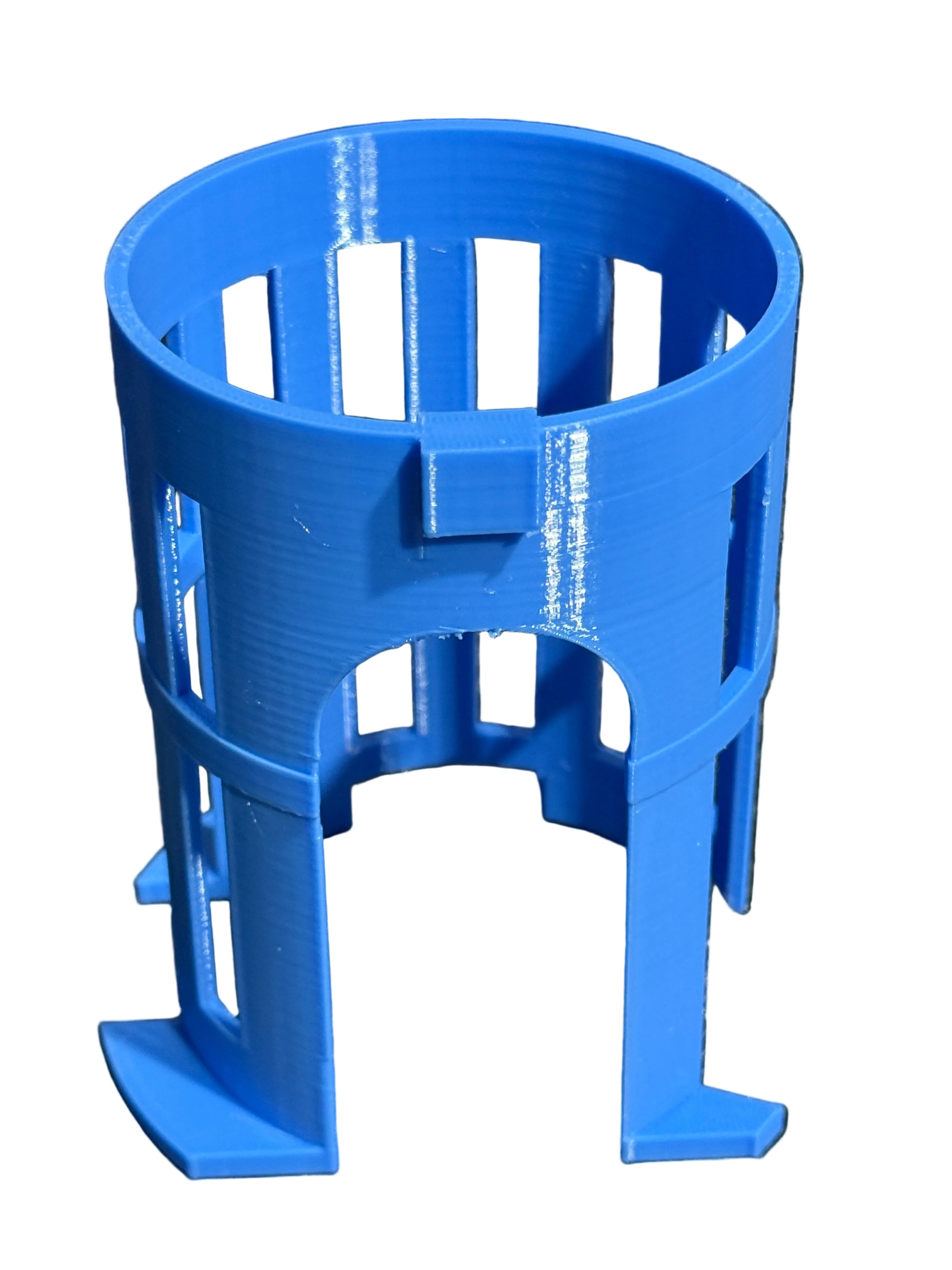

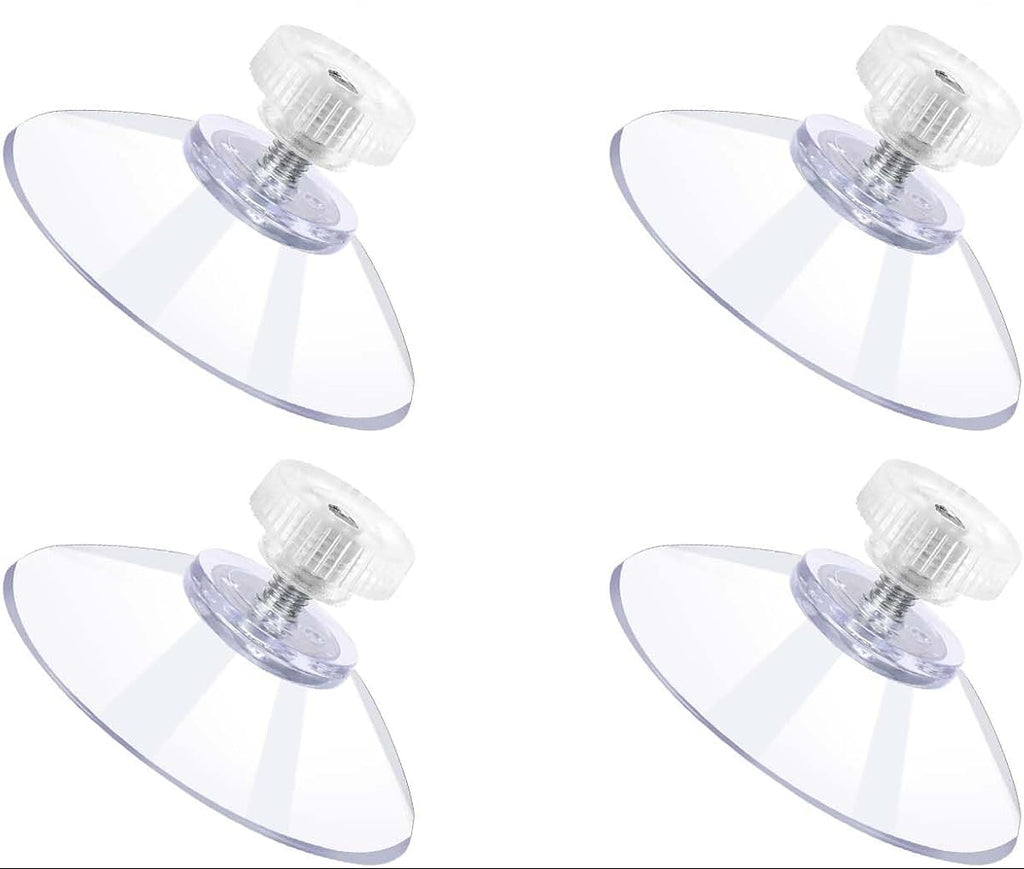

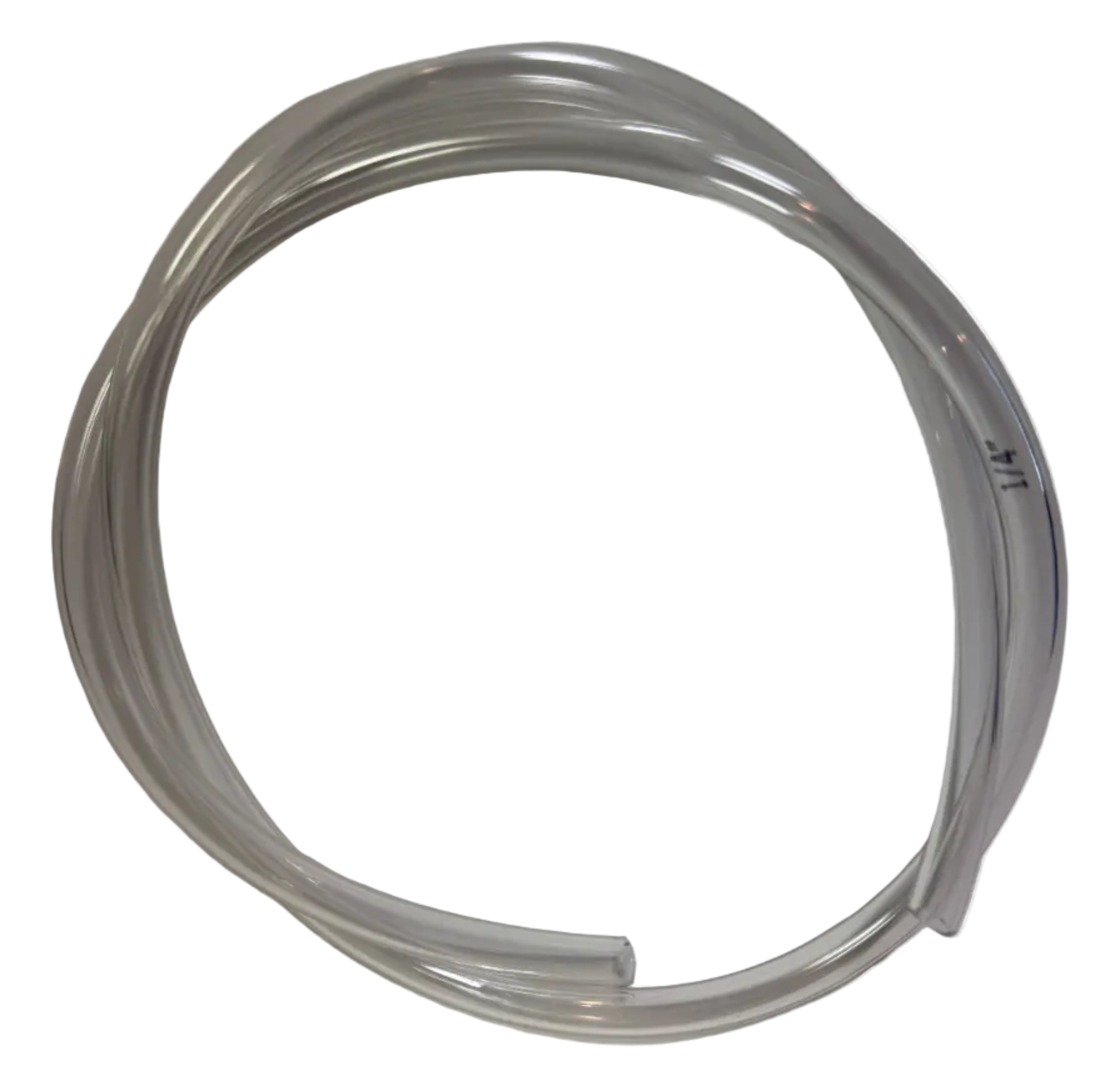

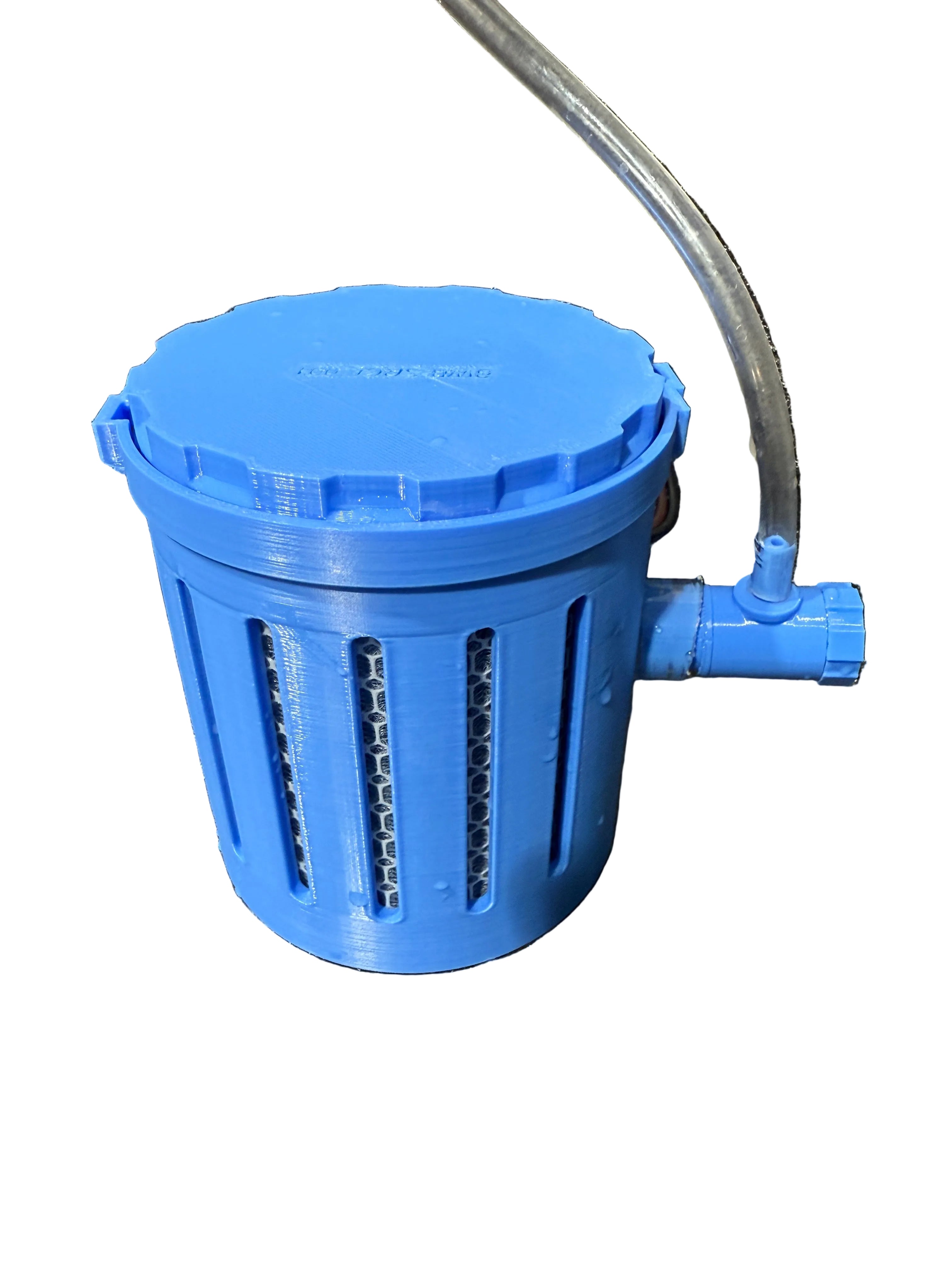

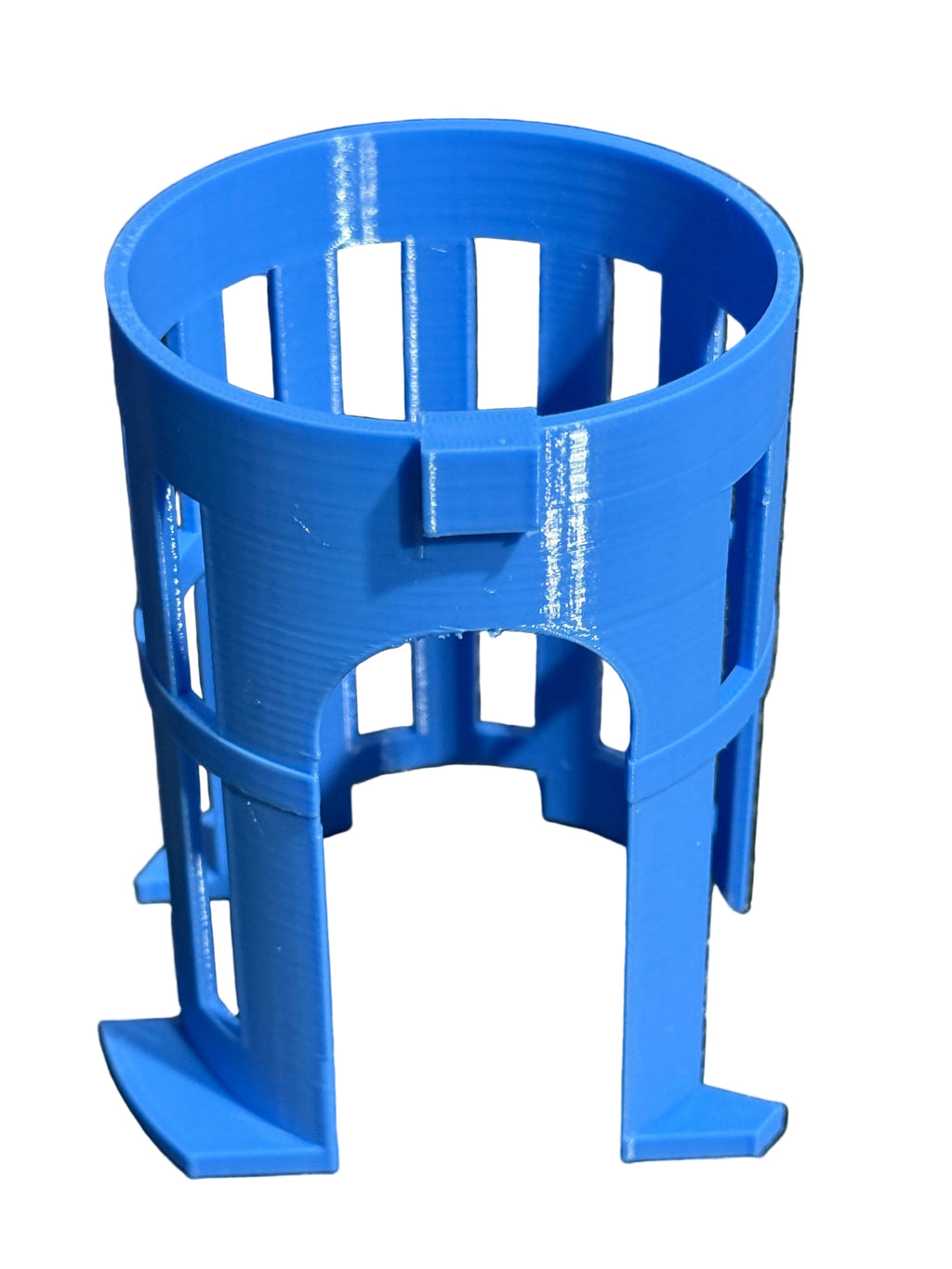

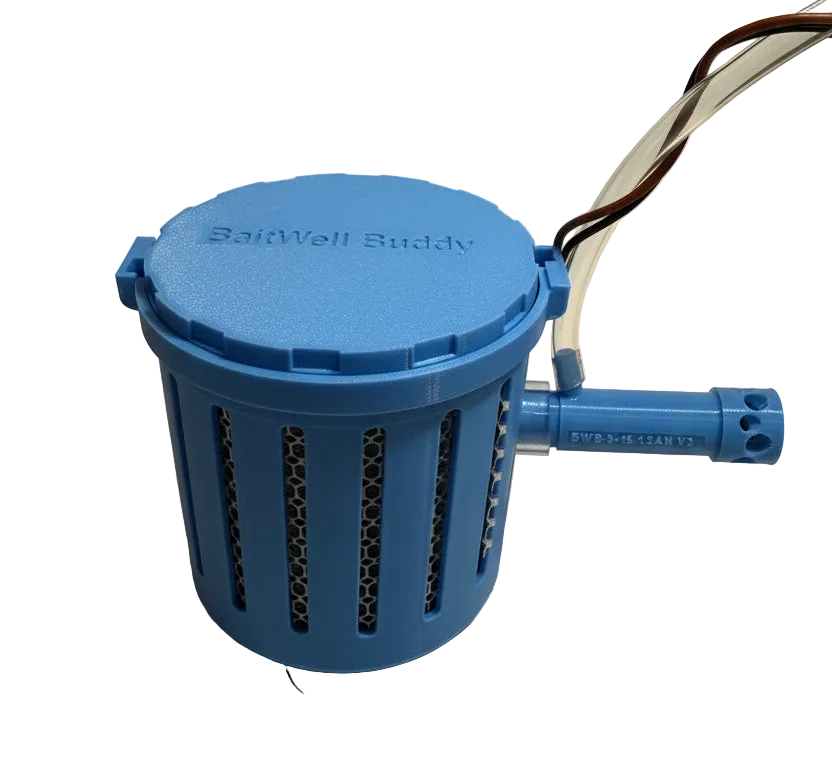

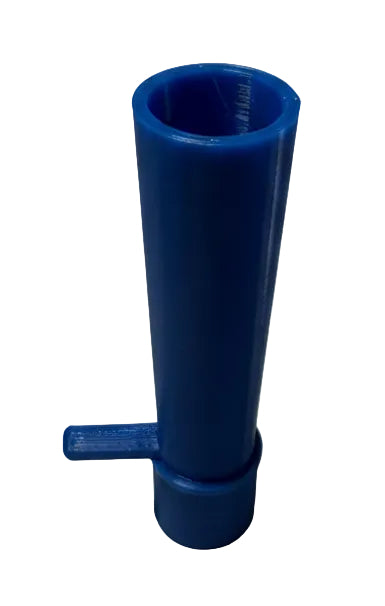

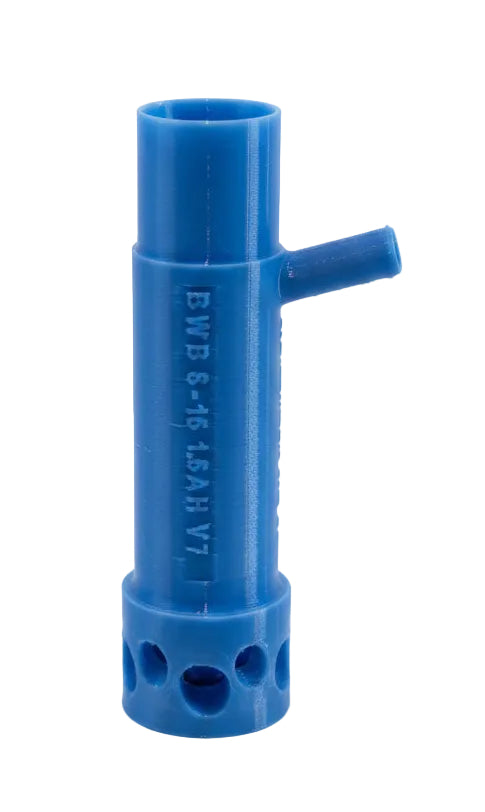

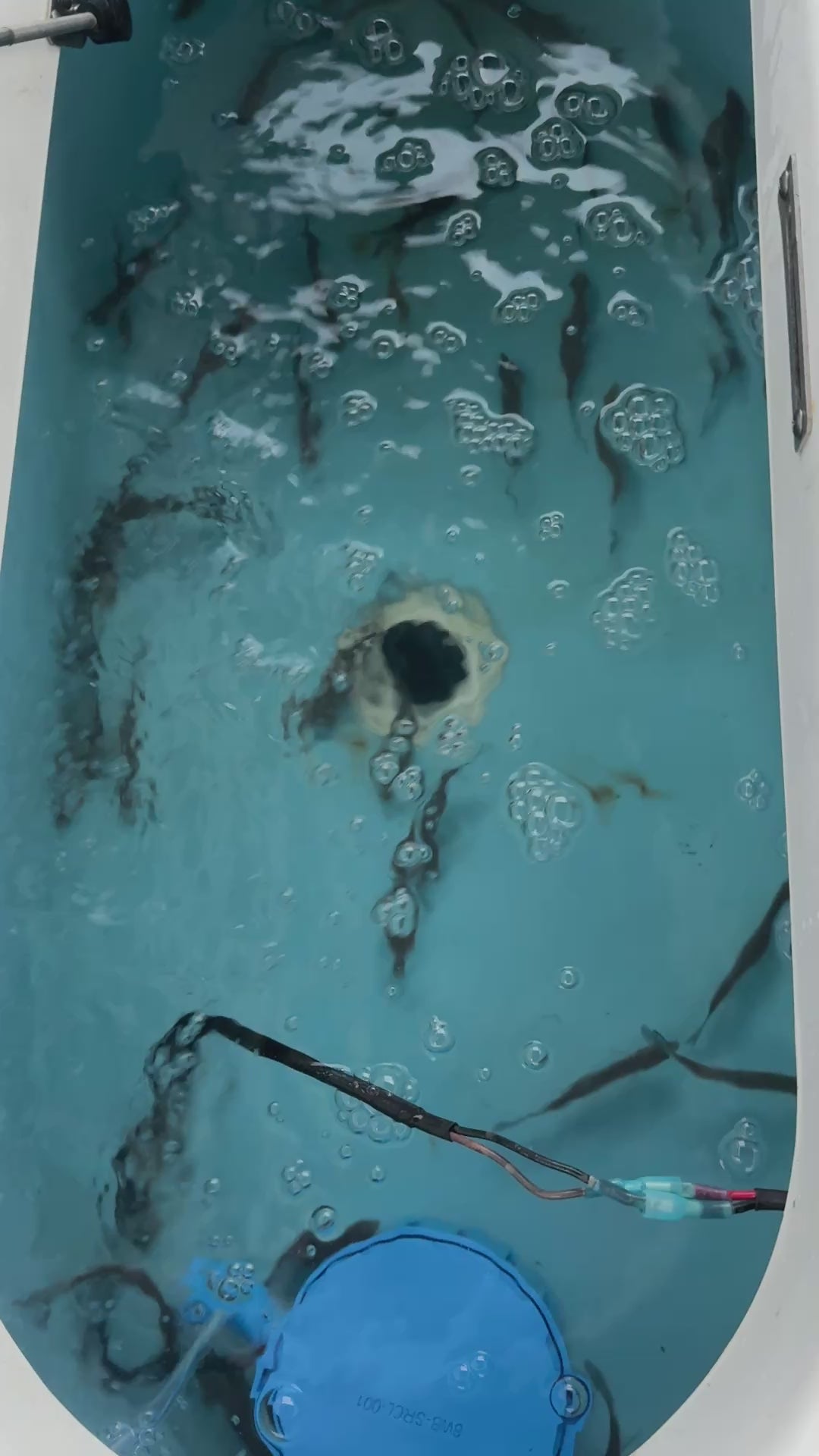

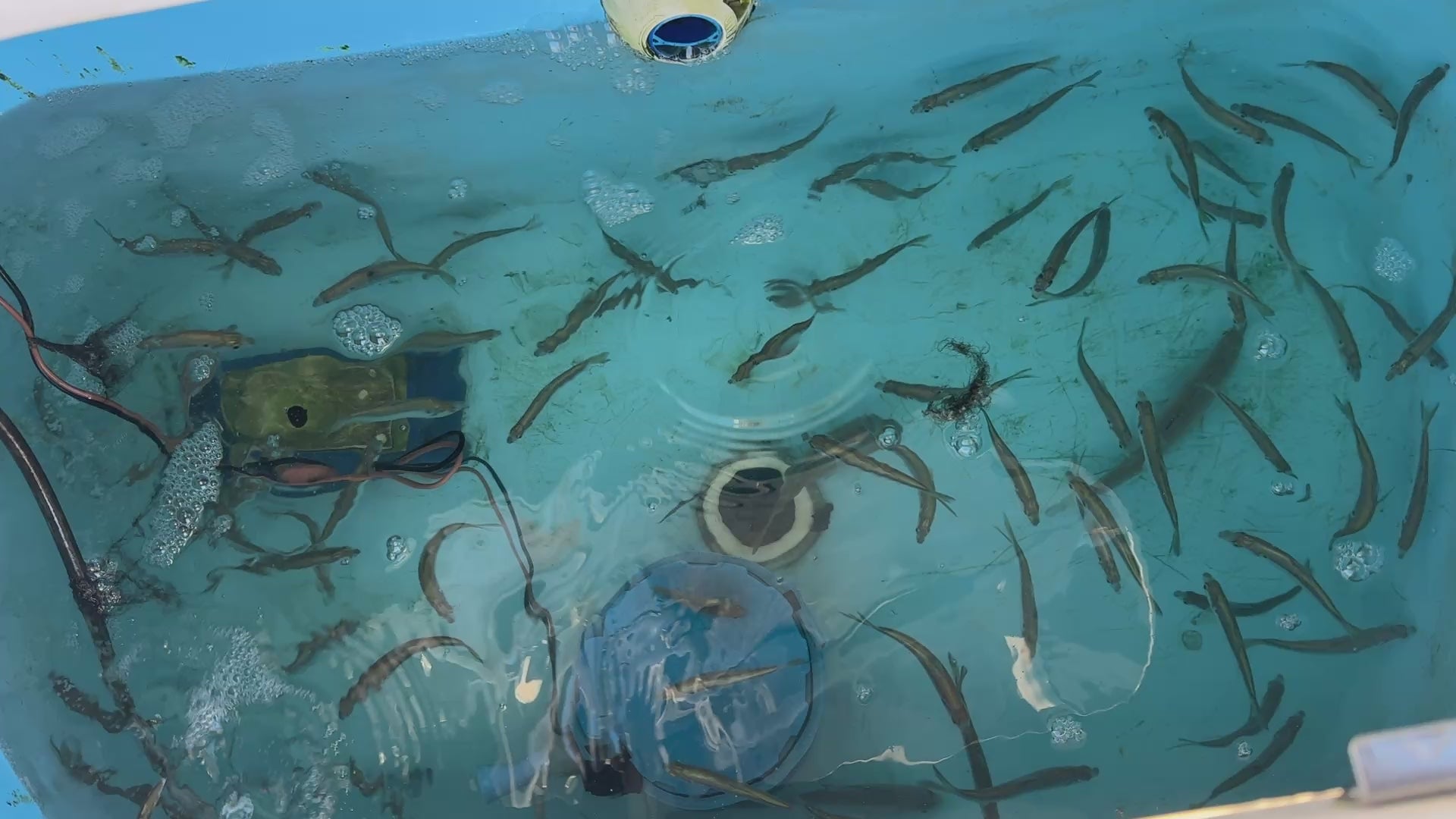

The BaitWell Buddy System comes fully preassembled inside a slotted cylindrical housing (4¾" diameter x 5½" tall) that secures to the bottom of your live well using four suction cups. A 3-foot clear 3/8" tube is connected to the venturi—simply attach this tube along the top edge of your live well using the included self-adhesive clips. Be sure the end of the tube remains above the waterline so the venturi can draw in air.

Connect the pump wires to your battery using the included quick connect/disconnect wiring harness and two alligator clips.

Setup is quick and simple:

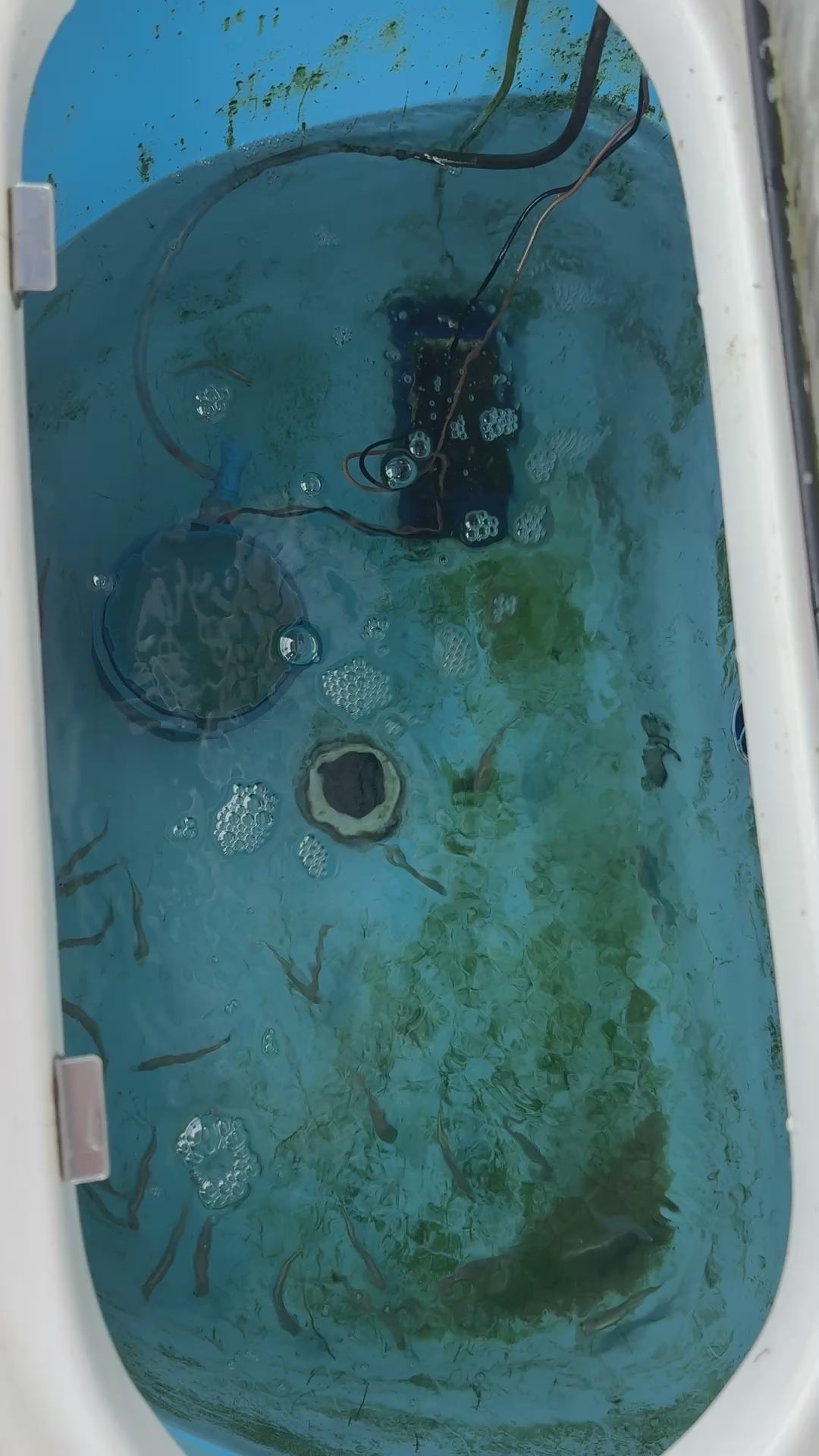

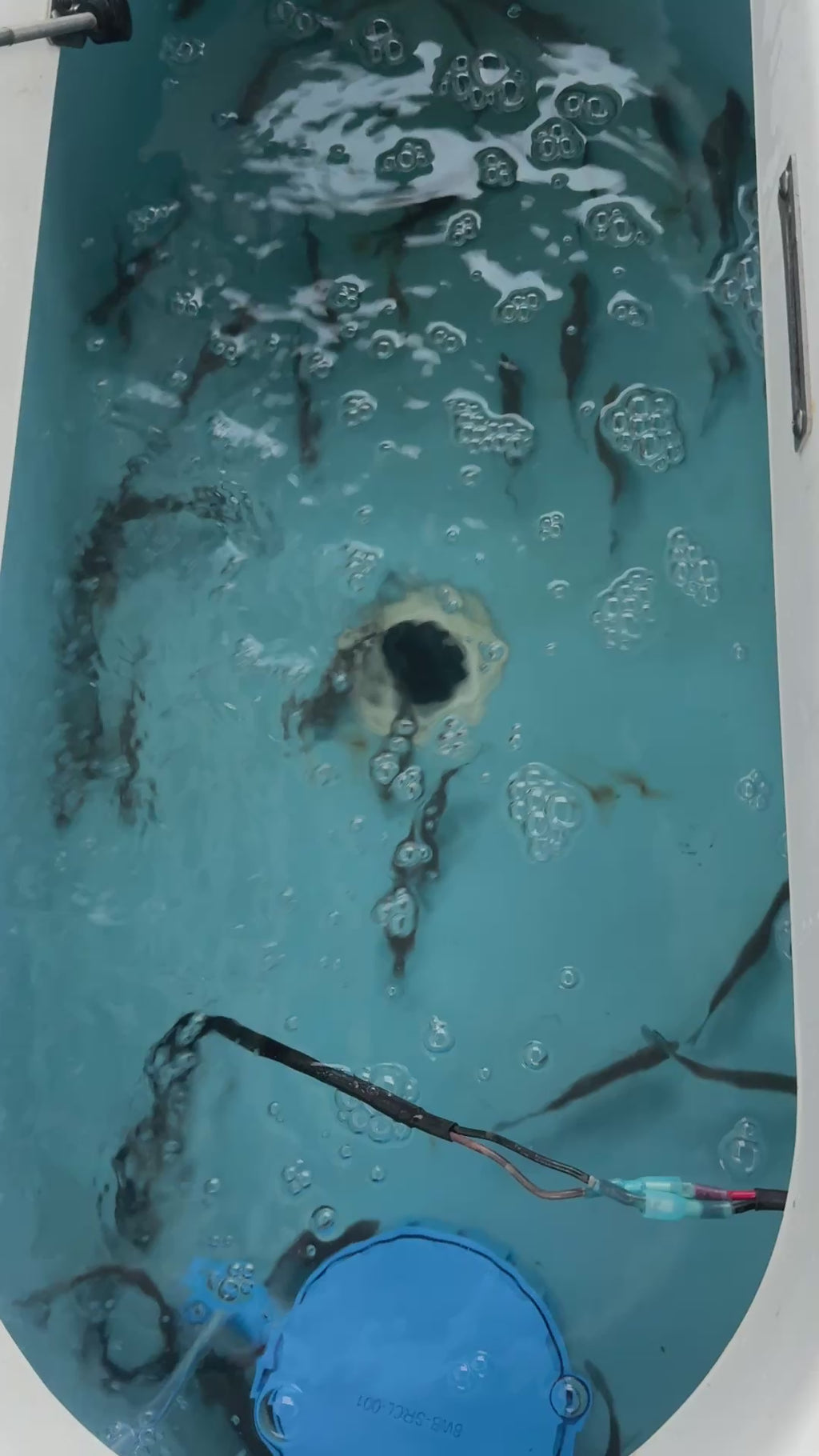

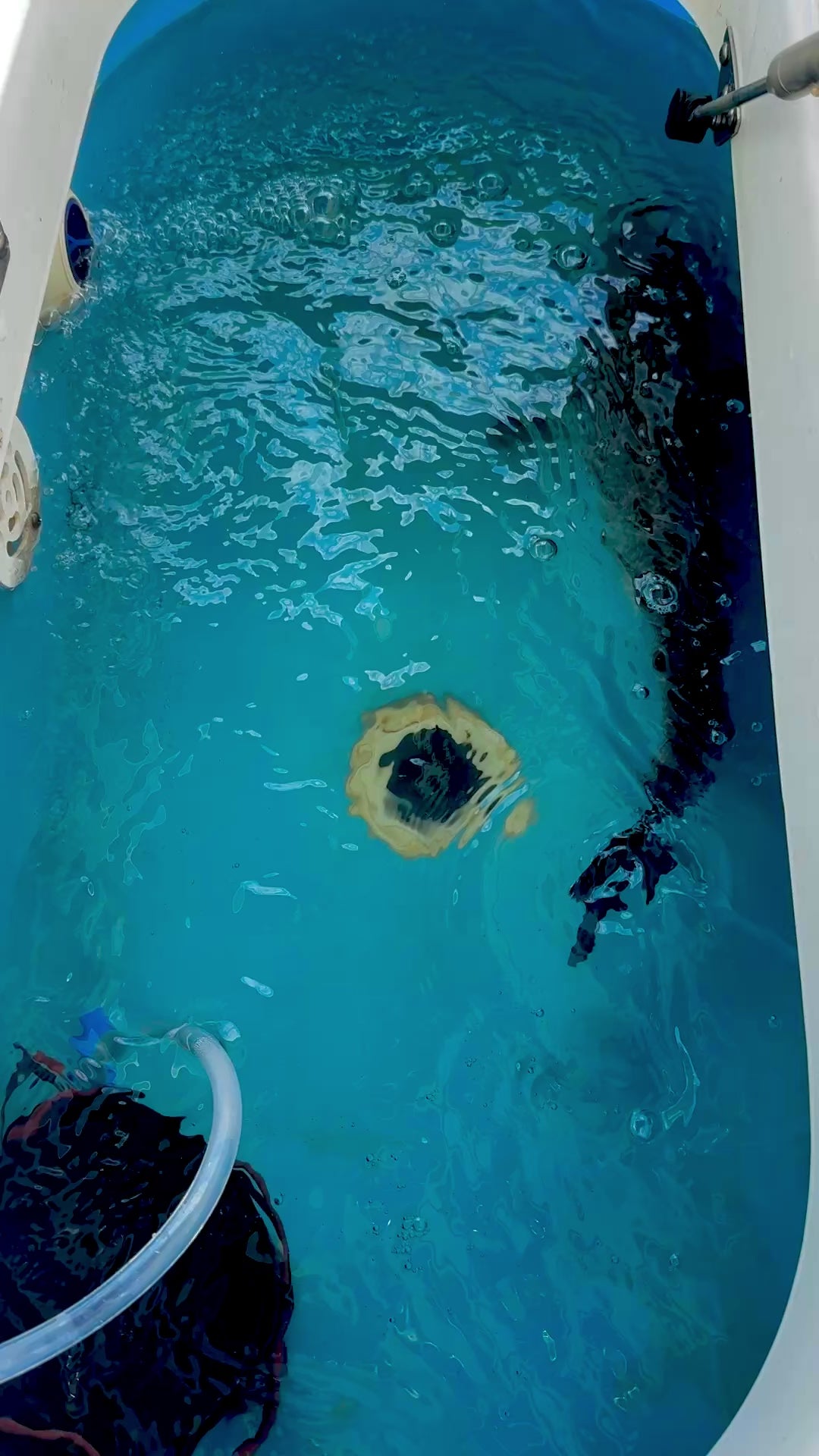

1. Place the BaitWell Buddy in your live well and press it firmly into place using the suction cups.
2. Secure the air tube along the top edge of the live well.
3. Fill the tank with water and connect the pump wires to your battery.

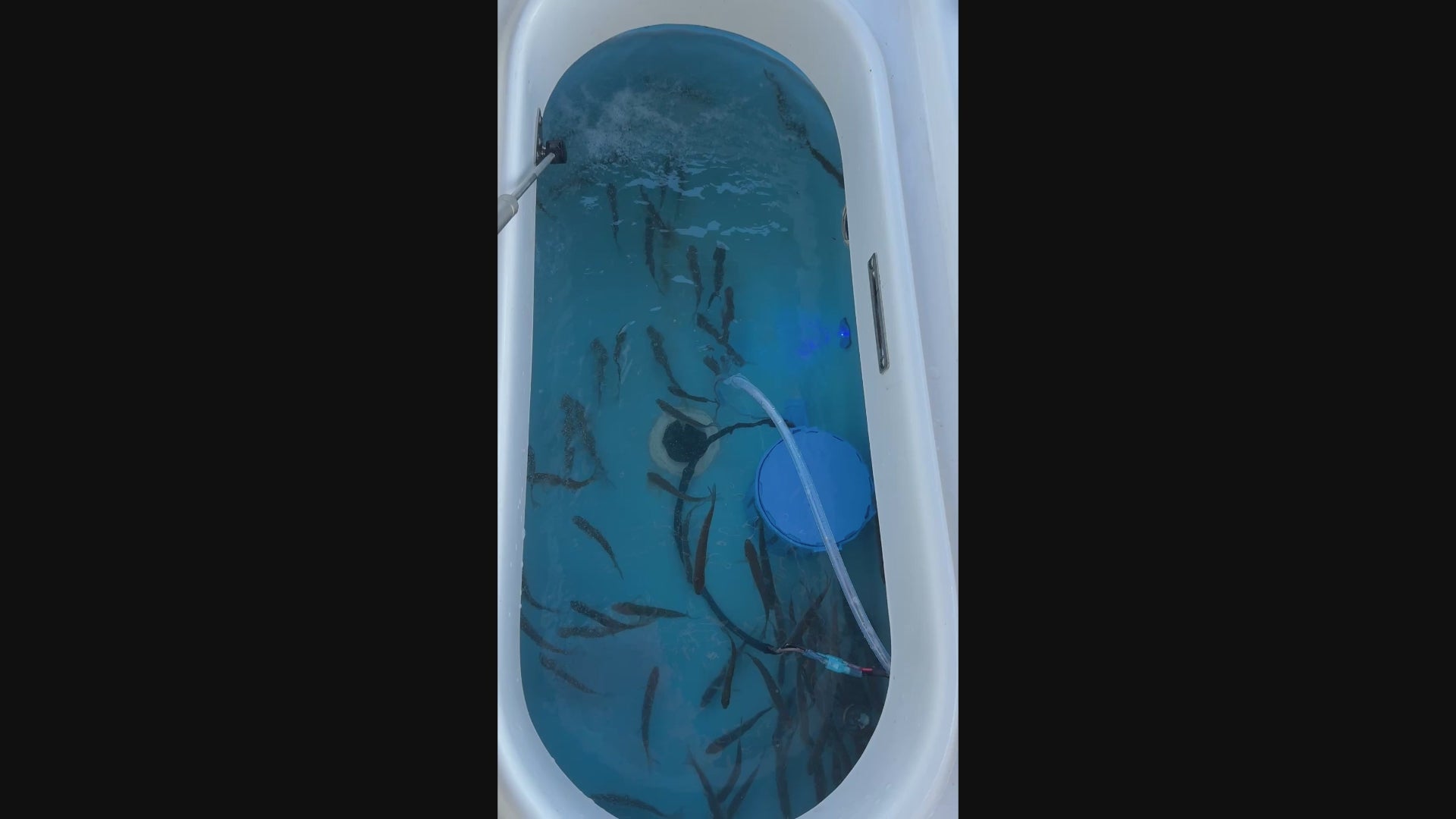

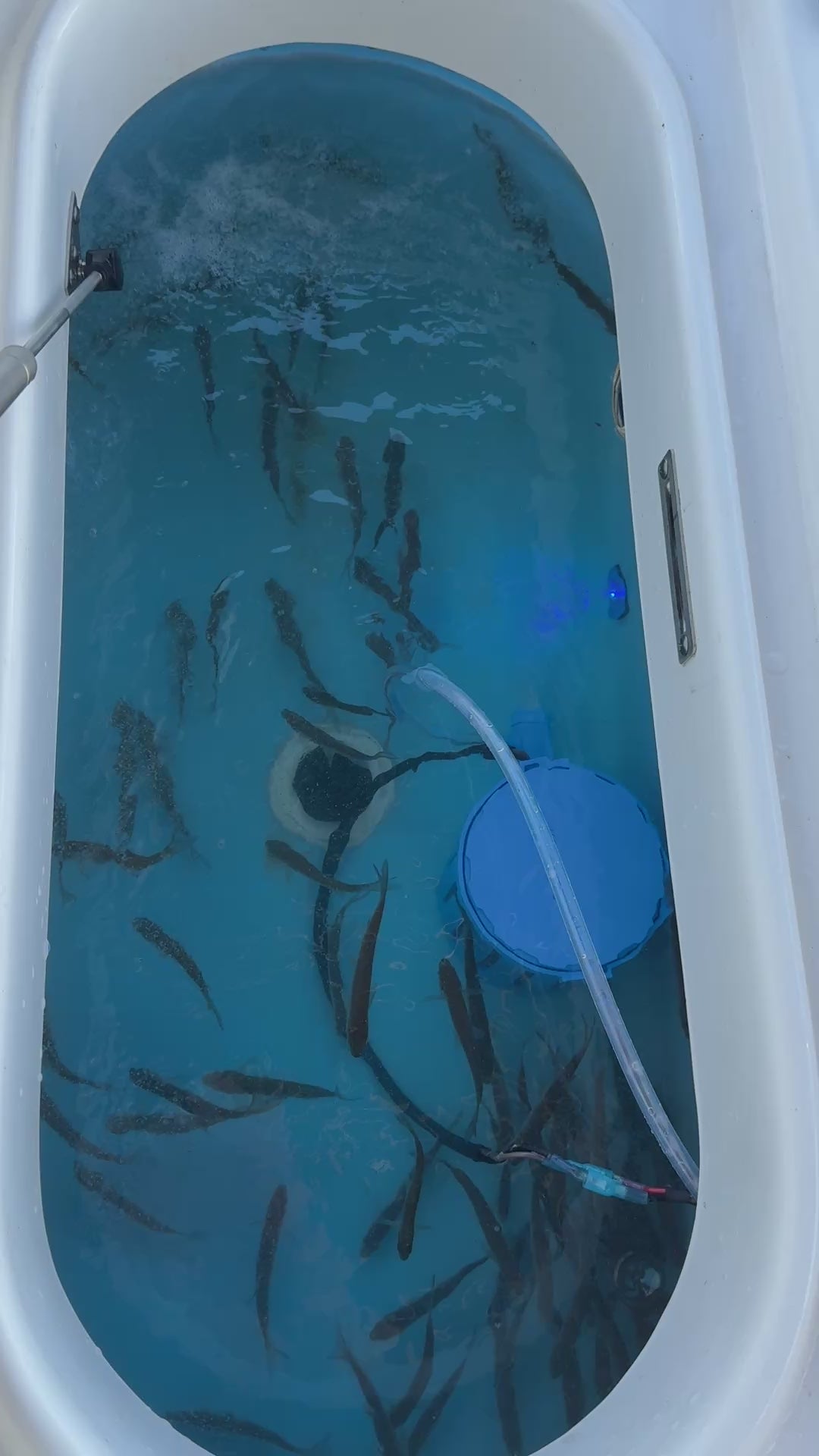

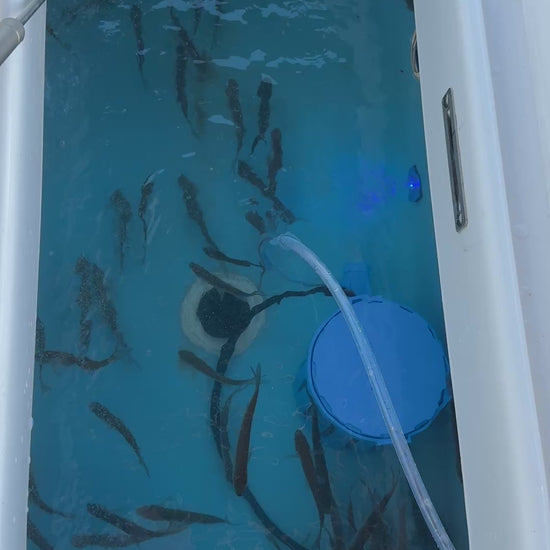

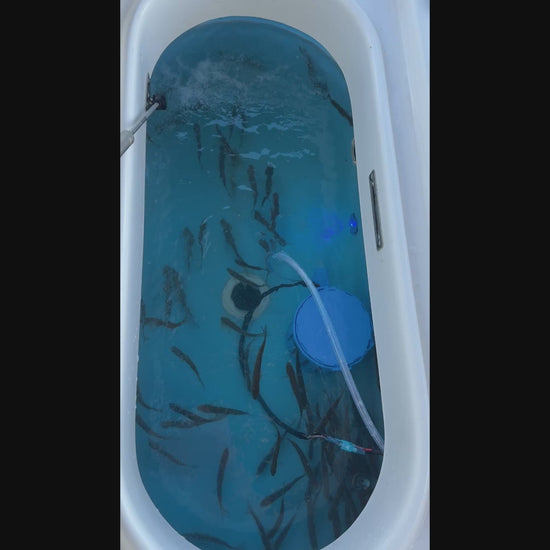

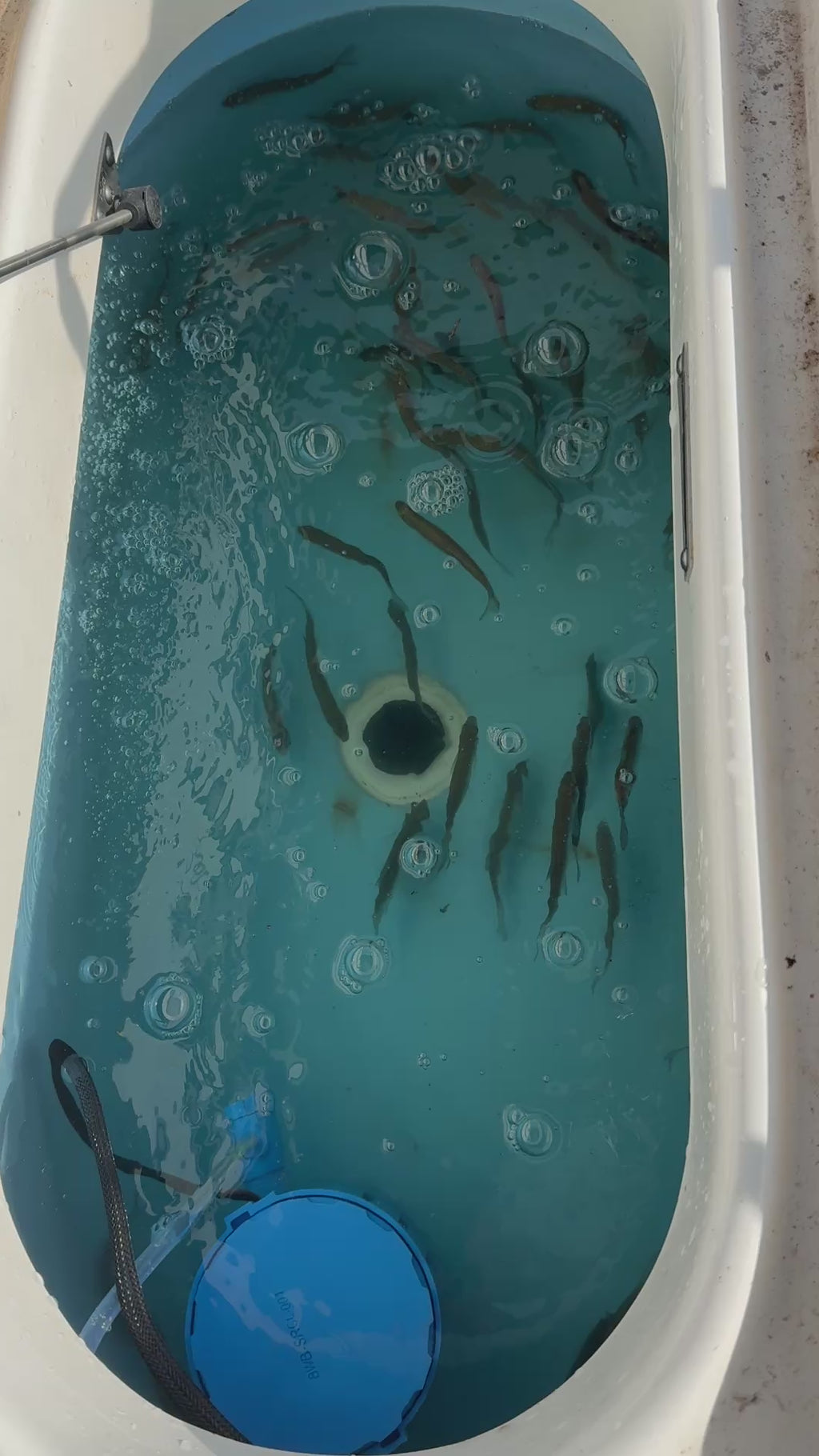

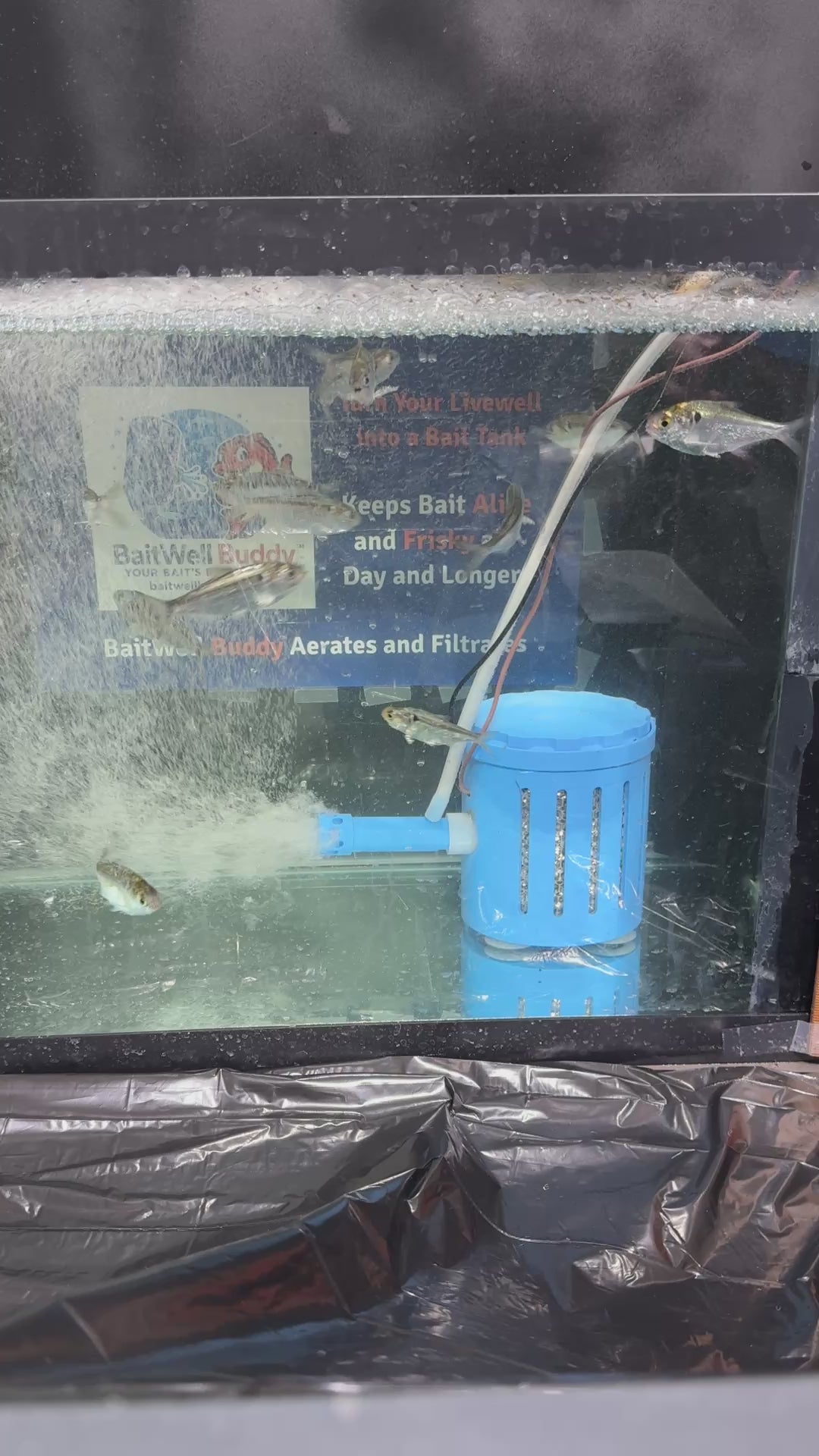

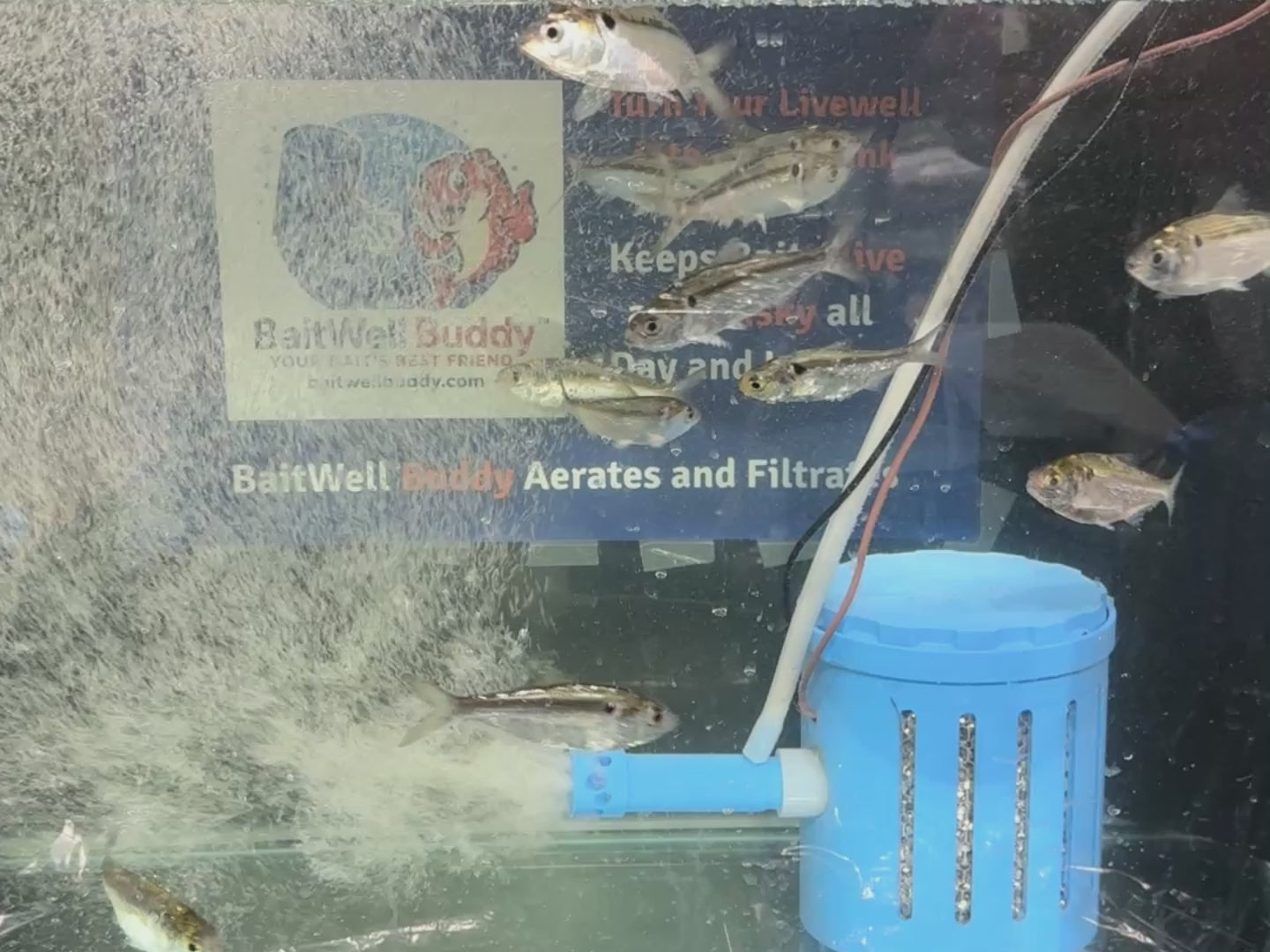

Once powered, the BaitWell Buddy begins filtering the water and oxygenating it through its specially designed venturi system.

Low Power Consumption

The SEAFLO 350 GPH Bilge Pump is designed for low-voltage, energy-efficient marine use. Here’s a clear breakdown of its power requirements and typical electrical usage:

⚡ Power Requirements

• Voltage: 12V DC (standard marine/automotive battery)
• Fuse Recommendation: 5-amp fuse for circuit protection

🔌 Current Draw & Energy Use

• Normal operating current: ~1.0 amp
• Maximum current draw: Approximately 2.0–2.3 amps under load This translates to very low power consumption:
• Typical power usage: ~12 watts during normal operation (12V × 1A)
• Peak consumption: Up to ~24–28 watts at maximum draw

Built to Last in Saltwater or Freshwater

SEAFLO live well pumps are built with rugged marine-grade construction – including durable ABS housing, stainless steel shafts, and moisture-tight seals – these pumps are highly corrosion-resistant and engineered for long-lasting performance in harsh Saltwater and Freshwater conditions. Plus, their quiet, vibration-free operation and efficient power draw mean you can enjoy a peaceful day on the water without draining your battery.

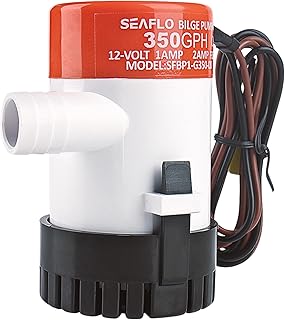

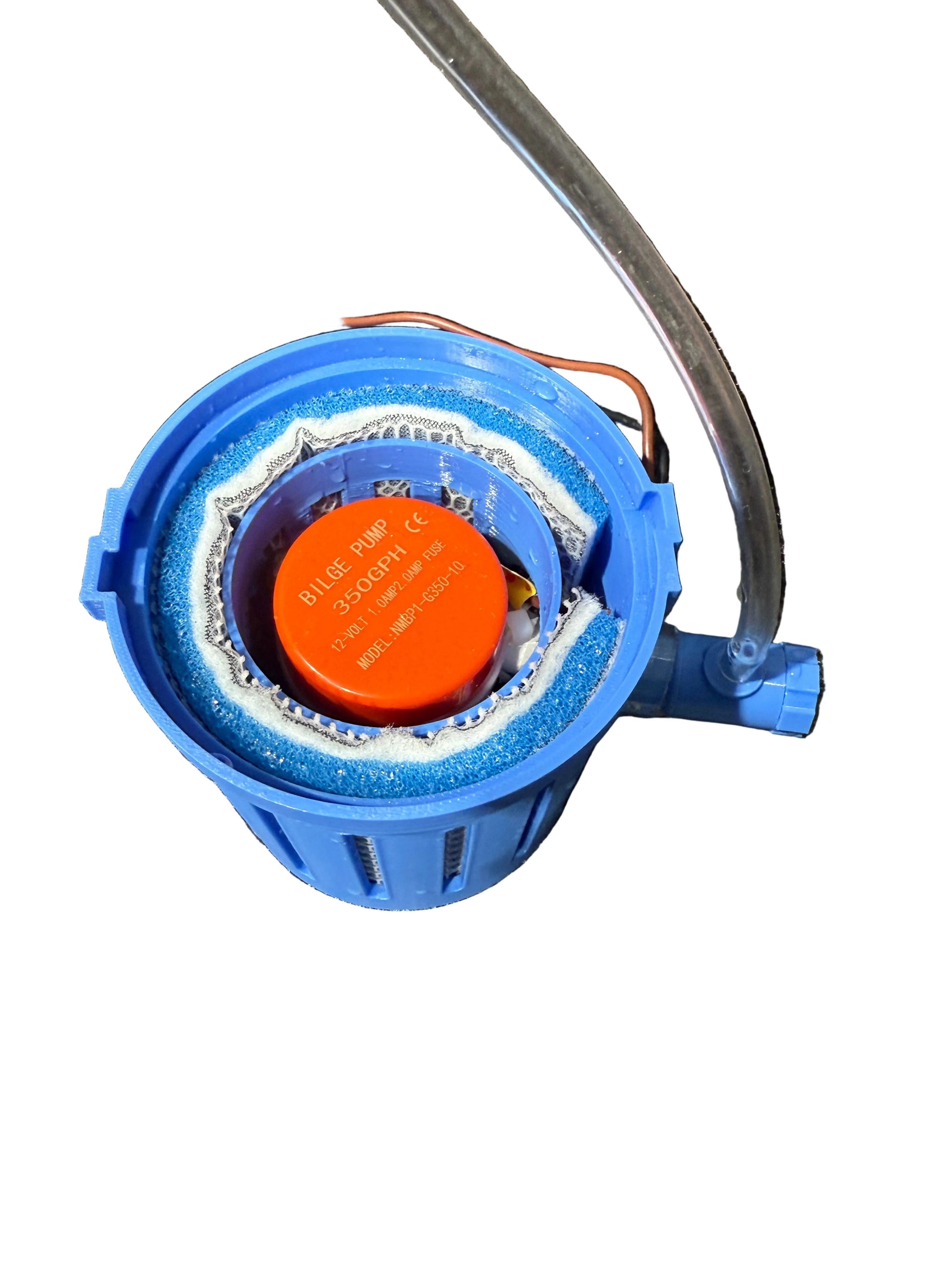

SeaFlo 350 GPH Pump

The BaitWell Buddy Live Well Pump works great with the BaitWell Buddy, it’s powerful 350 GPH system is perfect for live-well and bait tank setups. Built with marine-grade quality, combined with the BaitWell Buddy, it delivers steady, dependable filtration and aeration to reduce bait loss and ensure your catch stays in top shape.

Technical Specifications:

• Model: SFBP1-G350-09
• Voltage: 12V DC
• Flow Rate: 350 GPH (1325 LPH)
• Maximum Draw: 2.2A
• Outlet Diameter: 3/4" (19mm)
• Spray Tube Length: 9.4" (240mm), trimmable to custom fit
• Wire Lead: 3 feet (1 meter)
• Dimensions: 4.35"L x 5.95"W x 14"H
• Weight: 0.93 lbs.
• Material: Polypropylene (PP) housing with stainless steel shaft

Continuous Oxygenated Water Flow:

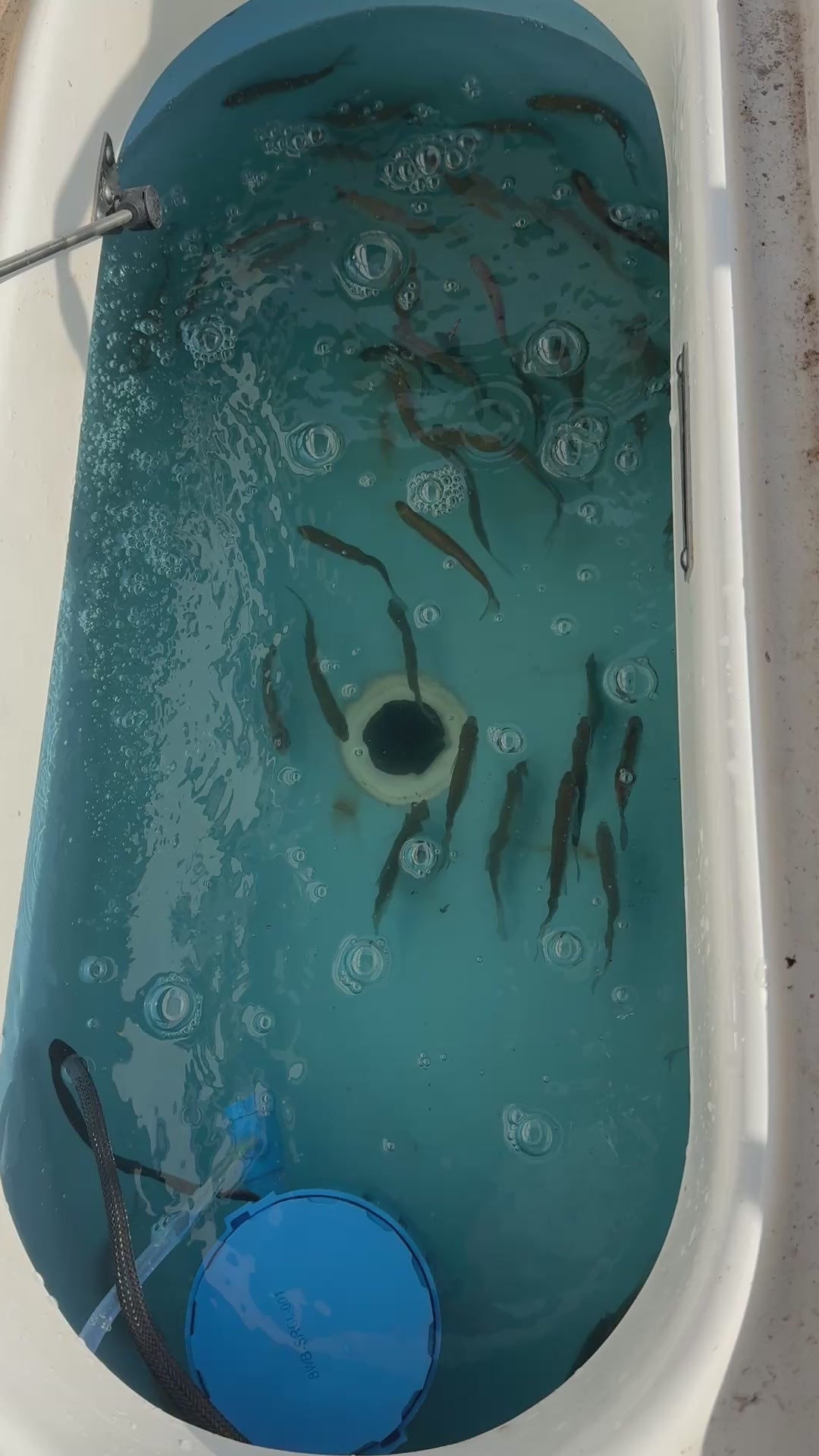

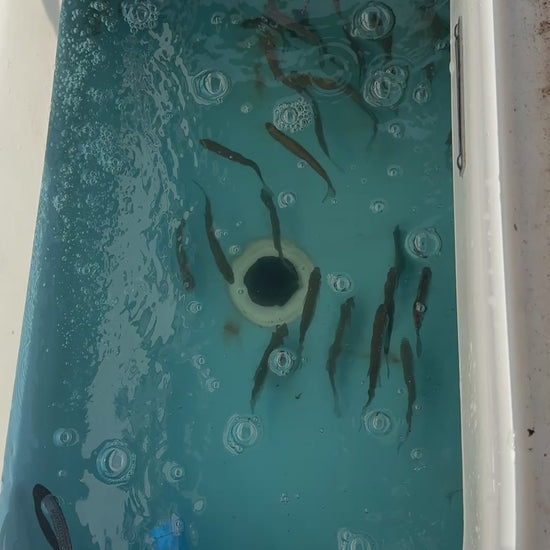

Pumps filtered water through the Buddy Venturi to provide continuous oxygenated water at 350 GPH. Maintains optimal oxygen levels in your live-well, prevents water stagnation, and keeps bait healthy and active throughout your fishing trip in both freshwater and saltwater environments.

Built to last in Saltwater and Fresh

Marine-Grade Construction:

Built with high-quality ABS plastic housing and a corrosion-resistant stainless-steel shaft designed to withstand the harsh marine environment. Performs reliably in both saltwater and freshwater conditions, trip after trip.

Quiet, Energy-Efficient Performance:

Low 2.2A power draw conserves your boat's battery while delivering powerful aeration. The whisper-quiet motor minimizes noise and vibration, reducing stress on your bait and keeping them lively longer.

Fully Submersible and Safety-Certified:

Engineered with moisture-tight seals and ignition protection for safe operation in demanding marine conditions. Meets CE, RoHS, ISO 8846, and ISO 8849 safety standards for peace of mind on the water.

Perfect Pairing:

Works seamlessly with the BaitWell Buddy filtration system for complete live-well management—combine aeration and filtration for the ultimate bait care solution. BaitWell Buddy will warranty this pump one year from purchase if purchased with the BaitWell Buddy System.
